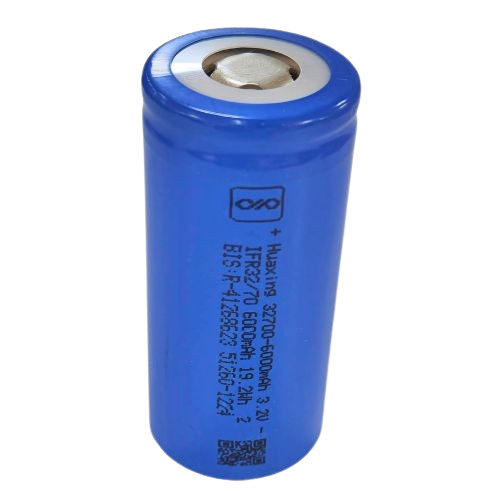

3.2V 6AH (32700) HX (LiFePO4) CELL

The HX SOLAR GRADE Cylindrical Rechargeable LiFePO4 Cell 32700 is a high-performance 6Ah lithium iron phosphate (LiFePO4) battery with a 3.2V nominal voltage. Engineered specifically for solar energy storage, renewable energy systems, and off-grid applications, this cell provides exceptional cycle life, safety, and efficiency.

Technical Specifications

• Model: 32700

• Nominal Voltage: 3.2V

• Nominal Capacity: 6Ah (6000mAh)

• Charge Voltage: 3.65V

• Discharge Cut-off Voltage: 2.5V

• Cycle Life: >2,000 cycles (80% DOD)

• Max Charge Current: 1C (6A)

• Max Discharge Current: 3C (18A)

• Peak Discharge Current: 5C (30A)

• Internal Resistance: ≤8mΩ

• Dimensions: 32mm x 70mm

• Weight: Approximately 145g
