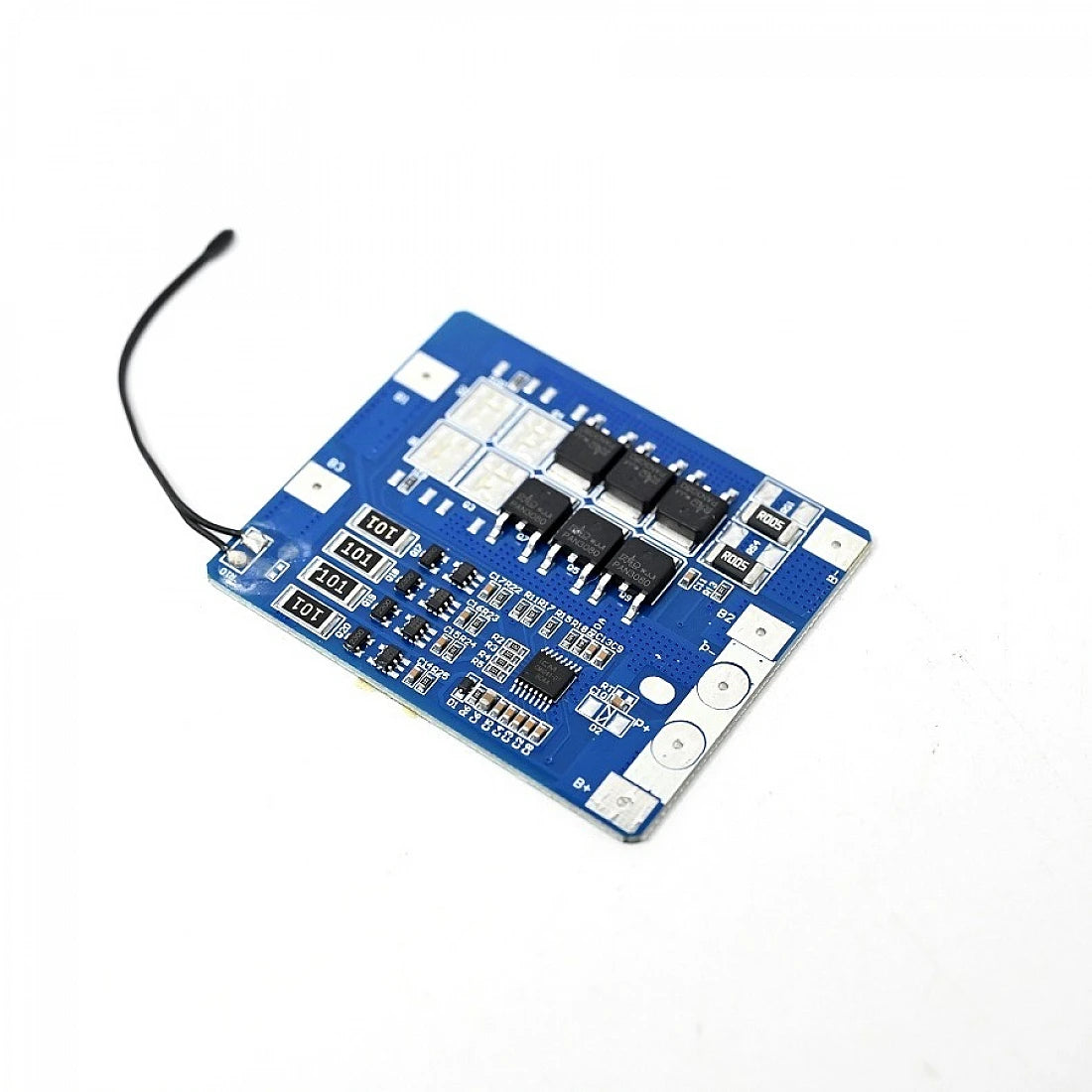

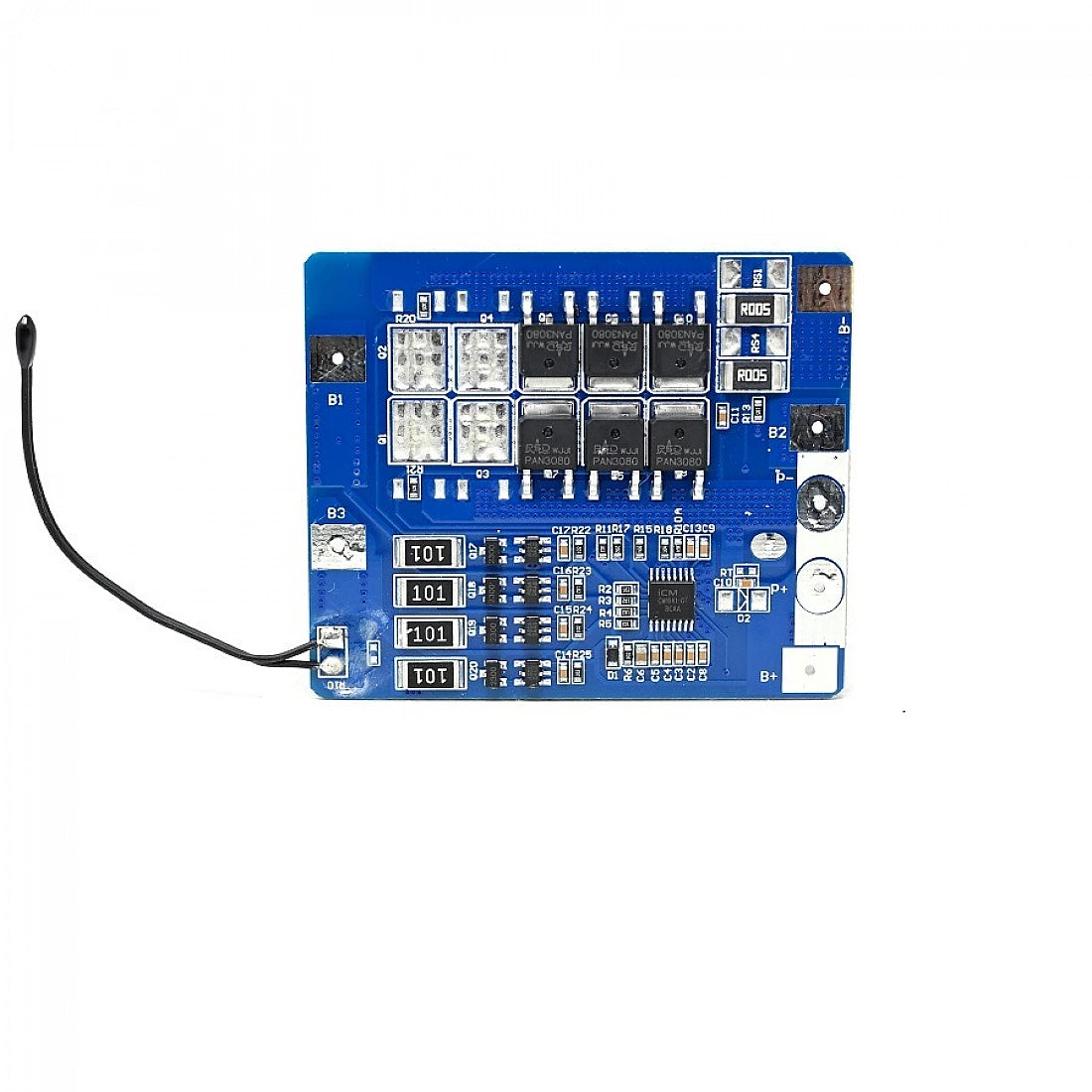

4S 15A SLCT(LiFePO4) BMS

The SLCT 4S/15A Blue BMS is designed for 4-cell LiFePO4 (LFP) battery packs, offering reliable overcharge, over-discharge, and short-circuit protection. With a 15A continuous discharge current, it ensures stable performance for medium-power applications. Its compact design and high-temperature resistance make it suitable for a wide range of devices. This BMS incorporates balancing functionality to extend battery life and maintain consistent performance across all cells. Easy to integrate, it supports safe and efficient operation of LiFePO4 batteries. Ideal for DIY projects, e-bikes, solar energy systems, and more.

Technical Specifications

• This Data sheet is for Lichtronics 4S 15A LiFePo4 PCM/BMS
• Charging Voltage - DC:14.4V CC/CV
• Max continuous charging current - 15A
• Over charge detection voltage - 3.65±0.05V
• Over discharge detection voltage -2.33±0.1V
• Over current detection current - 17.5±3A
• Operating Temperature- -45°C --+65°C
• Storage Temperature- -45°C -- +85°C
