4S 10A SLCT(LiFePO4) BMS

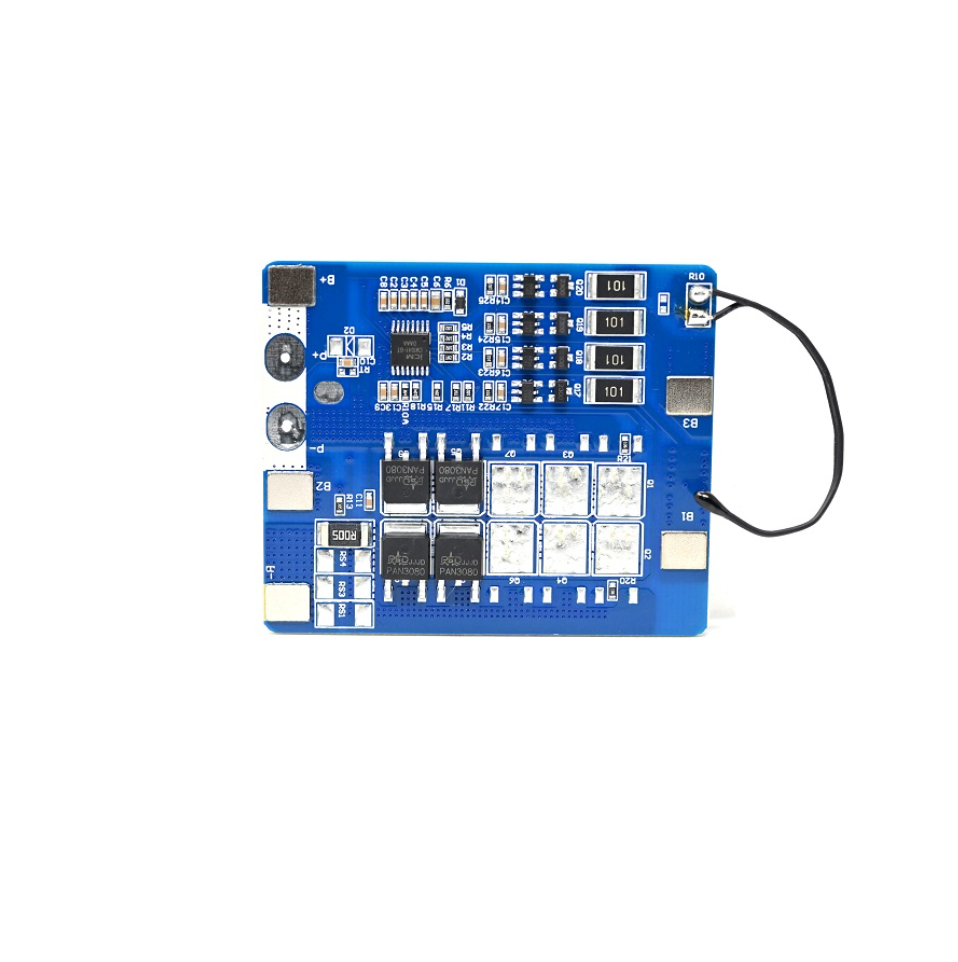

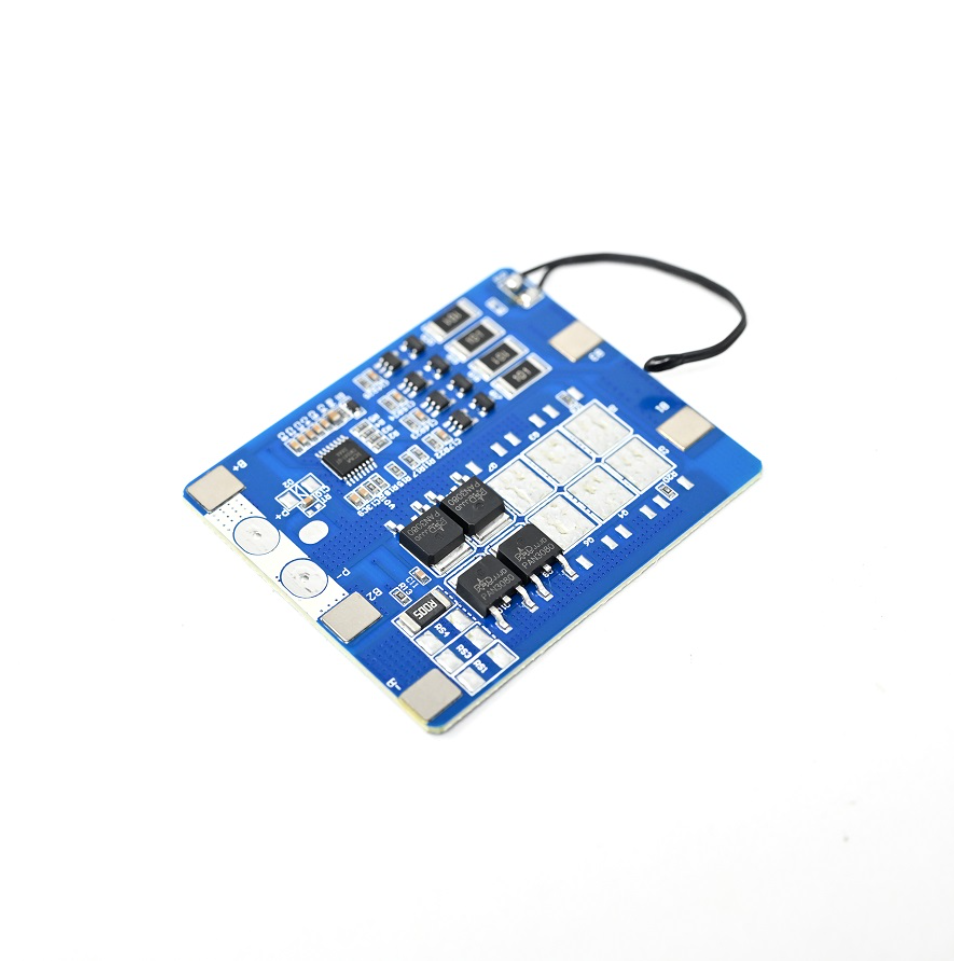

The BMS LFP 04S 10A BLUE SQUARE (SLCT) is a high-efficiency Battery Management System (BMS) crafted for 4S (4 series) LiFePO₄ battery packs, with a nominal voltage of 12.8V. Designed in a sturdy blue square PCB form, this board supports up to 10A continuous current, providing essential safety and long-term performance for medium-duty lithium battery systems.

Technical Specifications

• This Data sheet is for Lichtronics 4S 10A LiFePo4 PCM/BMS
• Charging Voltage - DC:14.4V CC/CV
• Max continuous charging current - 10A
• Over charge detection voltage - 3.65±0.05V
• Over discharge detection voltage -2.33±0.1V
• Over current detection current - 12.5±2A
• Operating Temperature- -45°C --+65°C
• Storage Temperature- -45°C -- +85°C
