CELL FOUNDRY

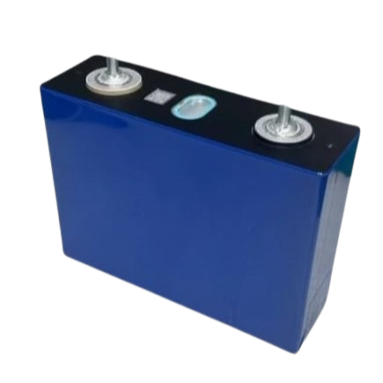

3.2V 100AH HIGHPOWER (LiFePO4) CELL
3.2V 100AH HIGHPOWER (LiFePO4) CELL
Regular price
Rs. 2,100.00
Regular price
Sale price
Rs. 2,100.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Attribute | Details |
|---|---|
| Cell Model | HighPower 100Ah |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Rated Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Operating Voltage Range | 2.5V – 3.65V |
| Max Charging Voltage | 3.65V |
| Max Continuous Charge | 0.5C |
| Max Continuous Discharge | 1C |
| Pulse Discharge Rate | Up to 3C |
| Cycle Life | 3000–5000 cycles (@80% DOD) |
| Internal Resistance | ≤1.0 mΩ |
| Weight | ~2.2 – 2.5 kg (approx.) |
| Dimensions (L×W×H) | ~173×48×135 mm (subject to batch) |

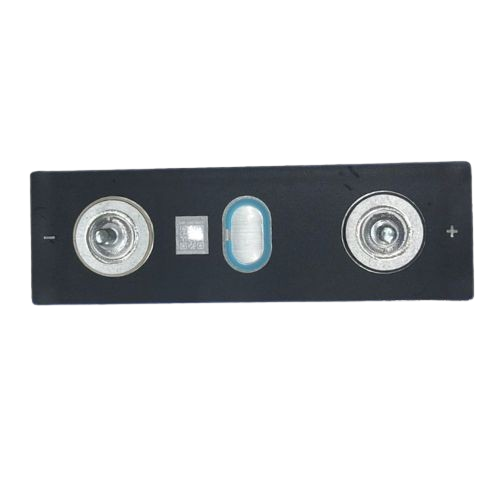

| Terminal Type | M6 Thread (bolted) |
| Balancing Feature | QR serial for capacity check |
